dassoXTR Soffit
dassoXTR Soffit, Deck Skirting and Wainscoting are Pre-primed and specifically designed for interior and exterior use with no leaching and zero VOC. All Fused Bamboo are Class-A Fire rated. dassoXTR fused bamboo soffit, deck skirting and wainscoting are ideal for creating an elegance lasting beauty environment.
1/2
Specifications


Product codeDescriptionSize(mm)SurfaceEnd MatchFinishRemark
XSO12-100-5TG-PSSdassoXTR outdoor oiled Soffit,
shiplap, T&G end match, T-12
L1850*W100*T12S/ST&GOutdoor OiledRegular Order
XSO12-100-5TG-PSS-L0dassoXTR outdoor oiled Soffit, T&G end match, T-12L1829*W100*T12S/ST&GOutdoor OiledRegular Order

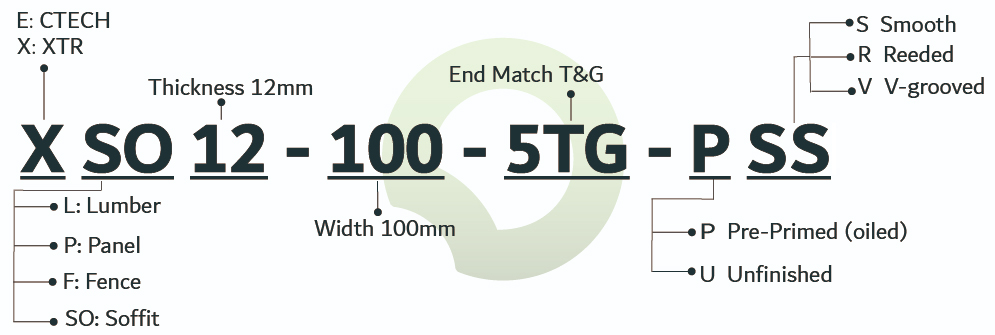

Remark the explanation of dassoXTR Soffit Product Code:


Benefits

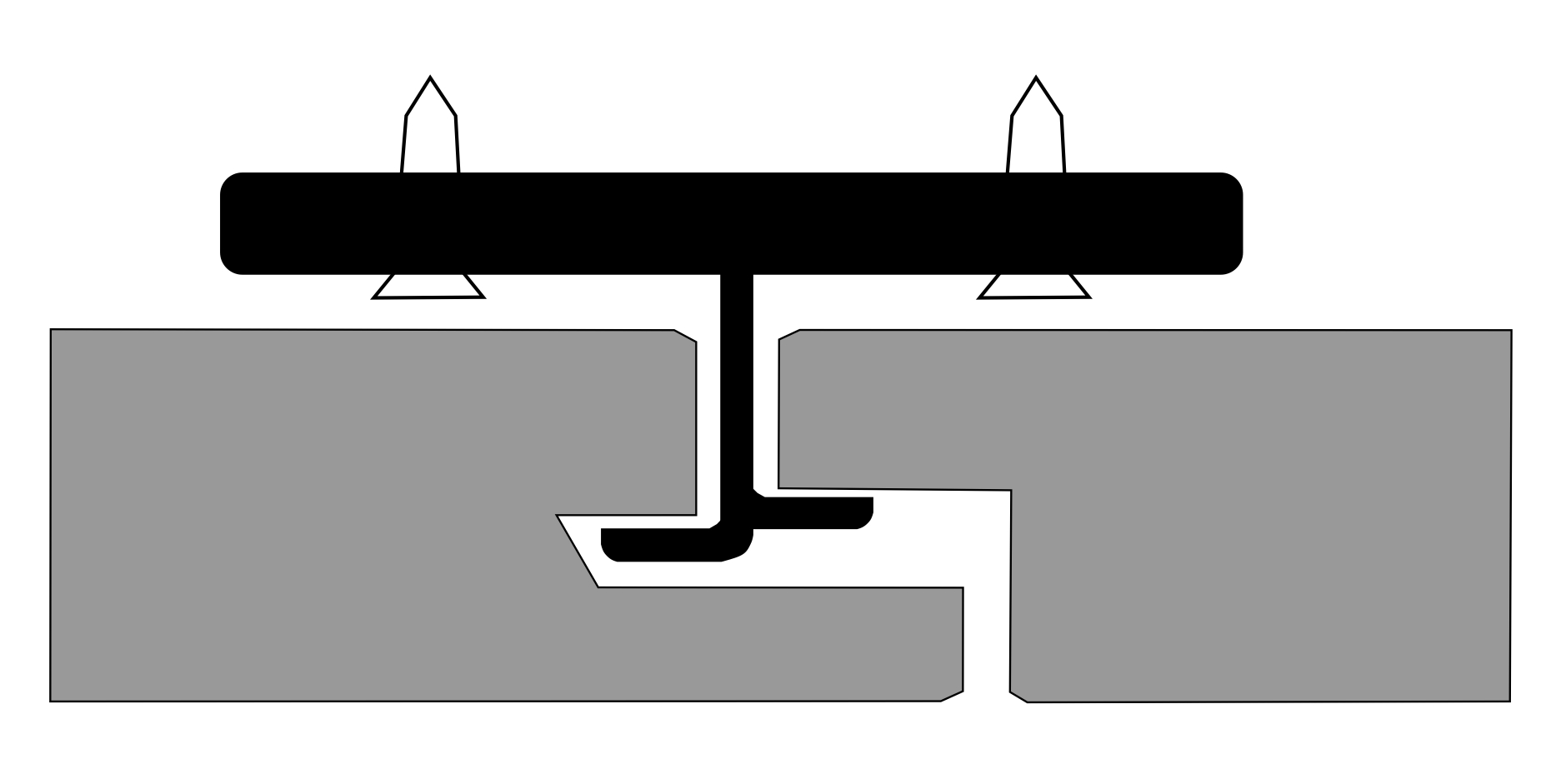

END MATCHED END MATCHED Installation on or off joists


Match Installation Available in Sheathing or Batten Installation


0资源 3123.png Hard & Durable harder than any other hardwood [EN 1534]; Durability: Class 1


资源 6.png Fire Resistance Class A / Bfl-s1; can be easily applied in public projects


0资源 2123.png Stable & Precise No head side gap between boards with T&G end match


资源 4.png Termite Resistance Class1: AS 5604; Class 8 [AWPA-2012,AWPA E1-09]


资源 3.png Mould Resistance  Class 0 [DIN EN ISO 846:1997-10] [DIN EN 152: 2011]


0资源 4123.png 25 - Year Limited Warranty


0资源 3.png Environment Friendly Bamboo ready for harvest after 4-6 years [compared to up to 100 years for hardwood species] – no deforestation

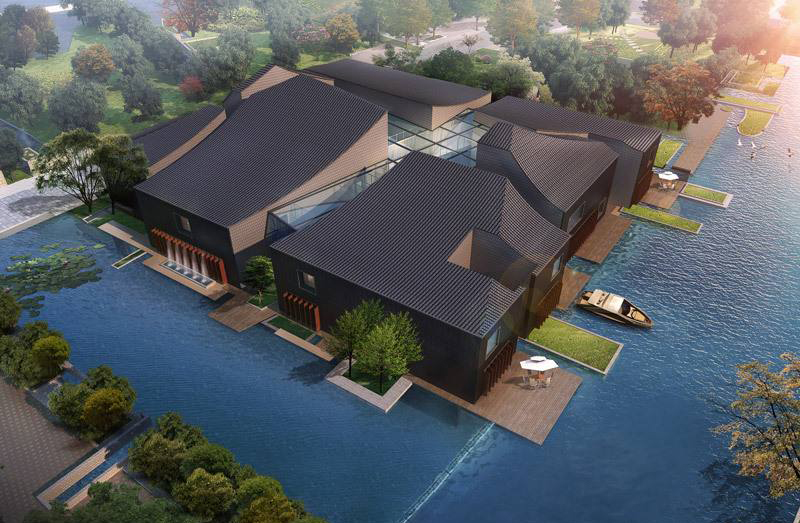

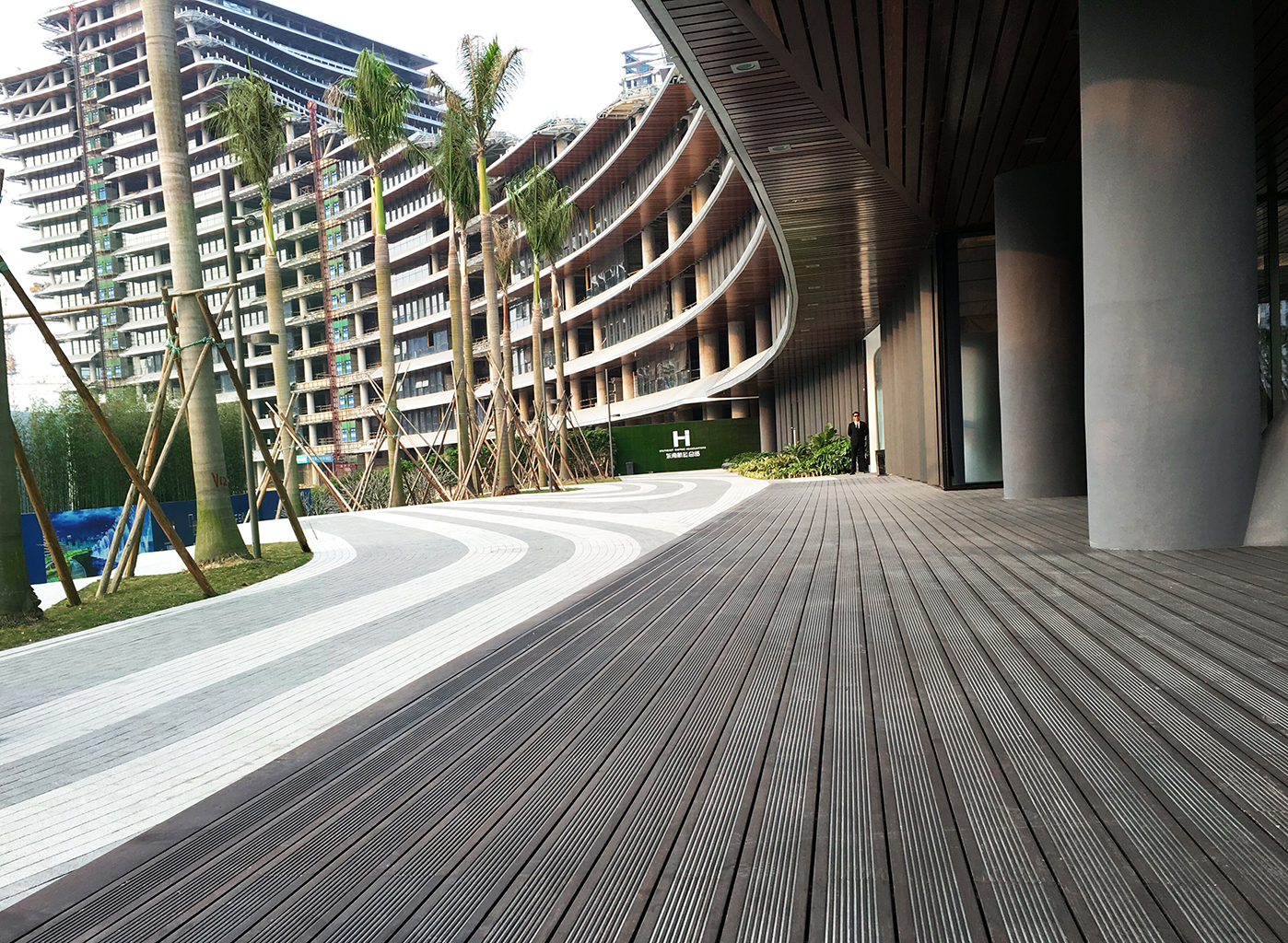

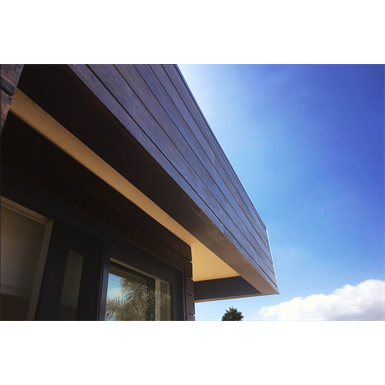

Application


北京长安运河 (7).jpg



厦门东南航运总部 (5).jpg


Please click the following link (bimobject) for bim files.

https://www.bimobject.com/zh/dasso/product/xso12-100-5tg-pss-bamboo-soffit



Please check out these video to know how to install the soffit!

https://youtu.be/hHKyuAEeqec
