dassoCTECH Lumber & Panel

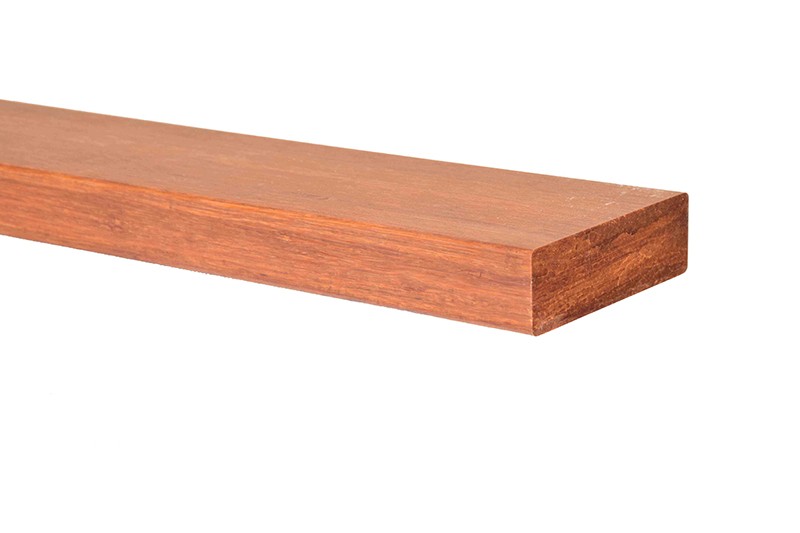

dassoCTECH Lumbers and Panels are to be considered like unfinished lumber; it is S2S+RE2 (sides need to be planed). The material is not pre-primed so the user can finish it as they choose. Both Fused Bamboo lumbers and panels come oversized to trim in two different thickness: 20mm and 40mm.dassoCTECH bamboo panels are ideal for creating outdoor furnishings for years of lasting beauty.
Specifications
Product codeDescriptionSizemmSurfaceFinishRemark

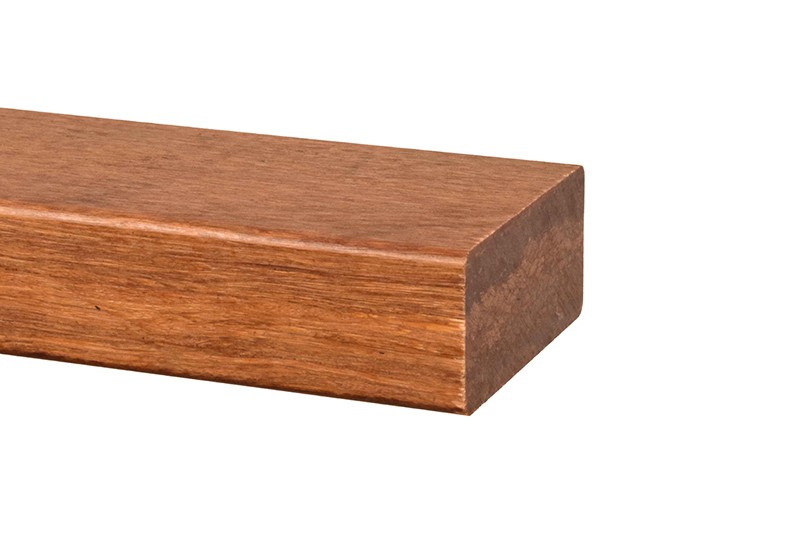

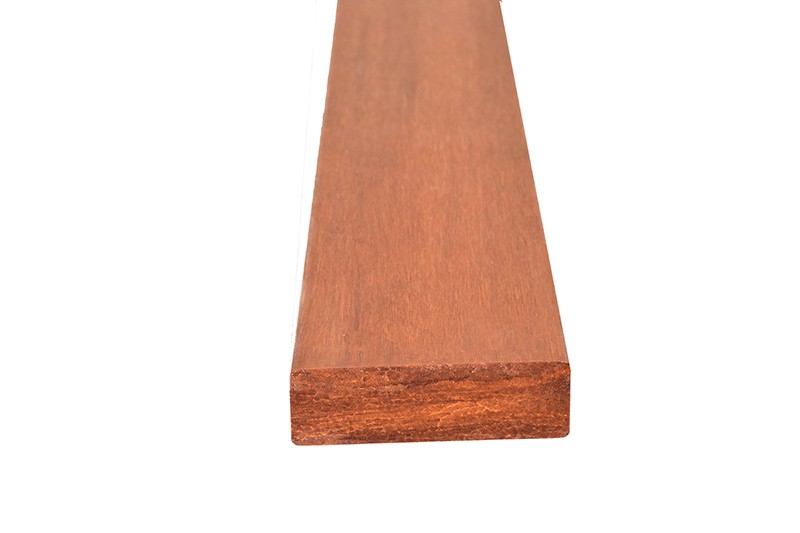

EL20-205-6FT-PACdassoCTECH lumber, Oiled, T-20L1860*W205*T20Square EdgedOutdoor OiledRegular Order
EL40-152-6FT-PACdassoCTECH lumber, Oiled, T-40L1860*W152*T40Square EdgedOutdoor OiledRegular Order
EF30-65-6FT-PSSdassoCTECH Fence, Oiled, T-30L1860*W65*T30BeveledOutdoor OiledRegular Order
EF30-100-6FT-PSSdassoCTECH Wider Fence, Oiled, T-30L1860*W100*T30Beveled Outdoor OiledRegular Order

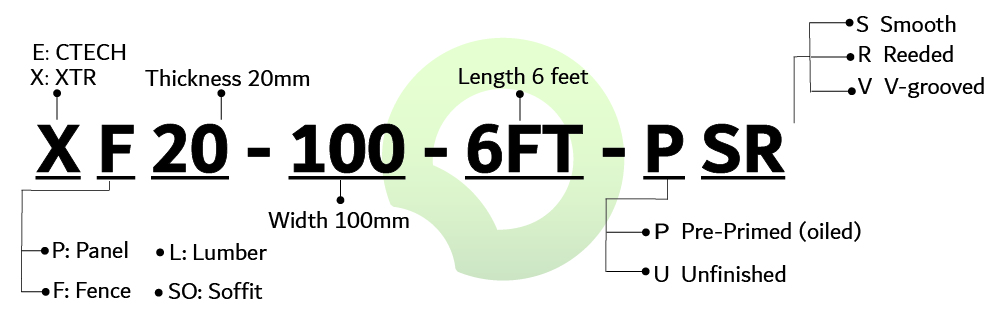

Remark the explanation of dassoCTECH Lumber&Panels Product Code:



Benefits

1571106891135003.png Wide range of usage, furnishings, fence, gates, railings, bench and so on

1571106922748782.png Flexible for customized production



0资源 3123.png Hard & Durable harder than any other hardwood [EN 1534]; Durability: Class 1


资源 6.png Fire Resistance Class A / Bfl-s1; can be easily applied in public projects

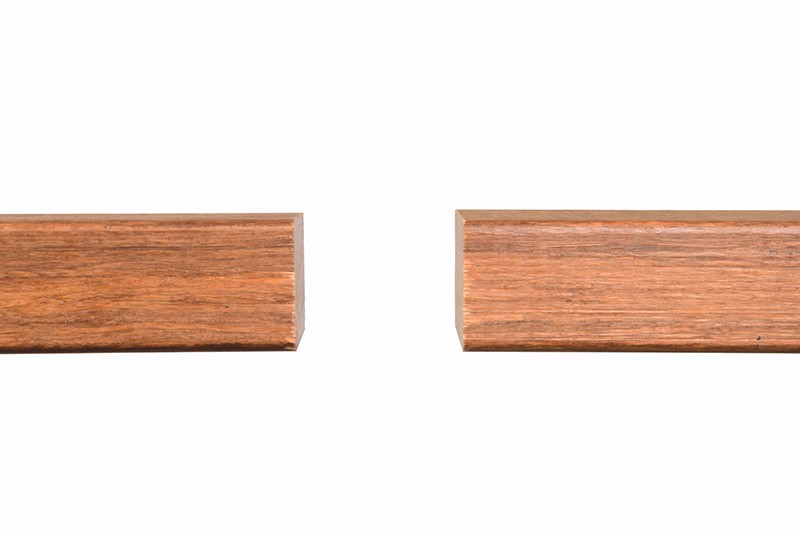

0资源 2123.pngStable & Precise No head side gap between boards with T&G end match


资源 4.png Termite Resistance Reticulitermes santonensis DC D(durable)[EN 117]


资源 3.png Mould Resistance  Class 0 [DIN EN ISO 846:1997-10] [DIN EN 152: 2011]


0资源 4123.png 25 - Year Limited Warranty


0资源 3.png Environment Friendly Bamboo ready for harvest after 4-6 years [compared to up to 100 years for hardwood species] – no deforestation


Application

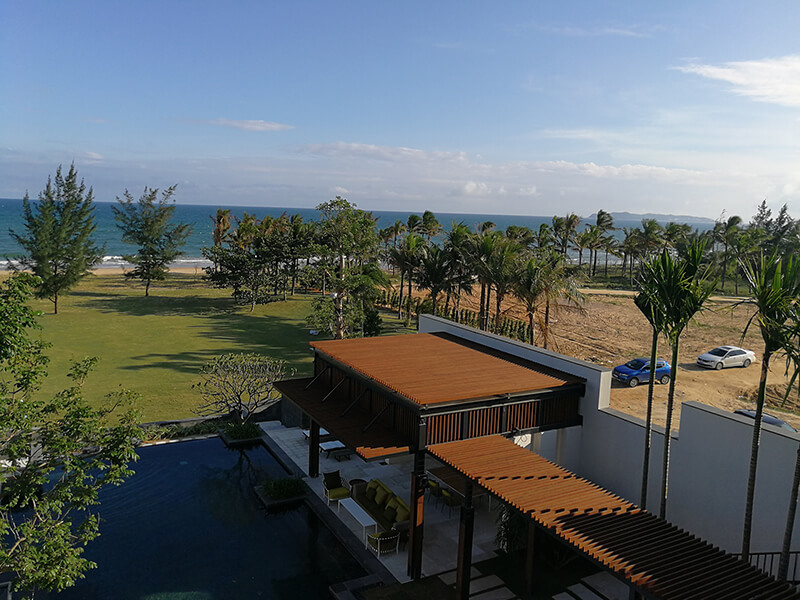

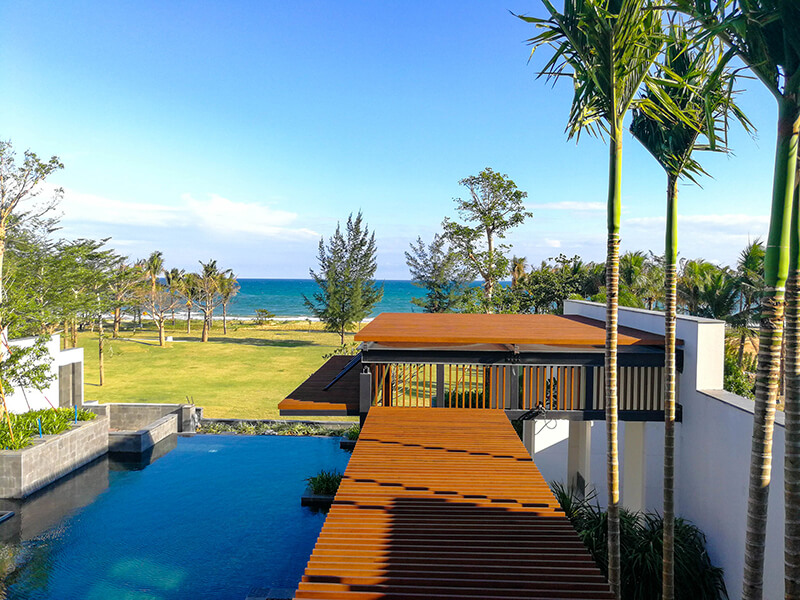

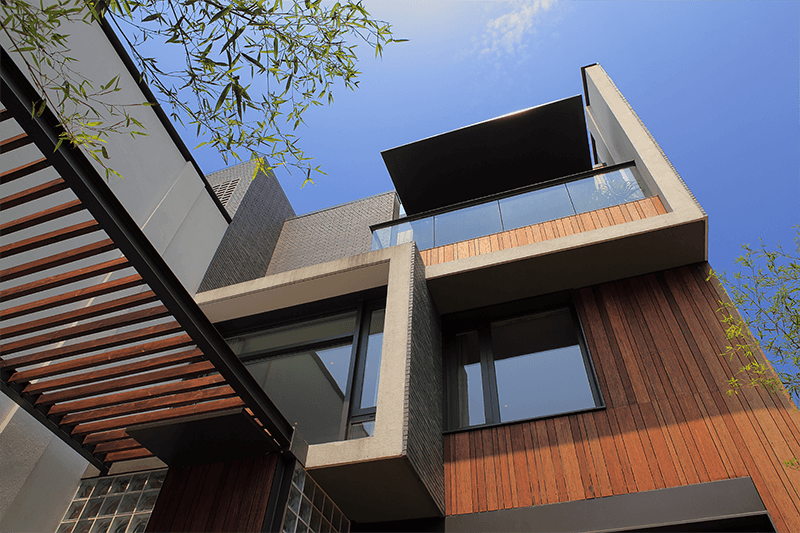

gallery frame, Pergola barrier, outdoor furnishings, signs









Please click the following link (bimobject) for bim files.

https://www.bimobject.com/zh/dasso/product/epc-lum40-152f-pp-bamboo-lumber-composite
